Cara Membuat Game Traffic Racer dengan JavaScript

Tutorial By Esti Pinarsih

Last updated on November 22nd, 2020

Dengan bantuan dari bahasa pemrograman CSS dan JavaScript, kita dapat dengan mudah membuat game traffic racer. Lalu, bagaimana cara membuat game traffic racer dengan CSS dan JavaScript? Yuk buka komputer kamu, dan ikuti beberapa langkah di bawah ini.

Tutorial

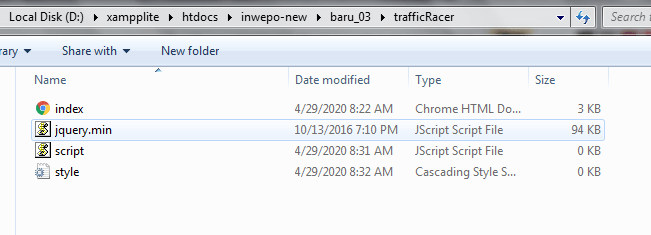

1. Download file plugin. Letakkan file di folder yang sama dengan index.html dan style.css.

2. Buka XAMPP Control Panel, serta aktifkan Apache.

3. Buka program teks editor yang ter-install di komputer kamu, disini saya menggunakan teks editor Notepad++. Ketikkan kode HTML5 berikut ini.

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>Membuat Game Traffic Racer</title>
    <link href="style.css" rel="stylesheet" /> </head>

<body>
    <div id="score_div">
        Score: <span id="score">0</span>
    </div>
    <div id="container">
        <!--<div id="line"></div>-->
        <div id="line_1"></div>
        <div id="line_2"></div>
        <div id="line_3"></div>
        <div id="car" class="car">
            <div class="f_glass"></div>
            <div class="b_glass"></div>
            <div class="f_light_l"></div>
            <div class="f_light_r"></div>
            <div class="f_tyre_l"></div>
            <div class="f_tyre_r"></div>
            <div class="b_tyre_l"></div>
            <div class="b_tyre_r"></div>
        </div>
        <div id="car_1" class="car">
            <div class="f_glass"></div>
            <div class="b_glass"></div>
            <div class="f_light_l"></div>
            <div class="f_light_r"></div>
            <div class="f_tyre_l"></div>
            <div class="f_tyre_r"></div>
            <div class="b_tyre_l"></div>
            <div class="b_tyre_r"></div>
        </div>
        <div id="car_2" class="car">
            <div class="f_glass"></div>
            <div class="b_glass"></div>
            <div class="f_light_l"></div>
            <div class="f_light_r"></div>
            <div class="f_tyre_l"></div>
            <div class="f_tyre_r"></div>
            <div class="b_tyre_l"></div>
            <div class="b_tyre_r"></div>
        </div>
        <div id="car_3" class="car">
            <div class="f_glass"></div>
            <div class="b_glass"></div>
            <div class="f_light_l"></div>
            <div class="f_light_r"></div>
            <div class="f_tyre_l"></div>
            <div class="f_tyre_r"></div>
            <div class="b_tyre_l"></div>
            <div class="b_tyre_r"></div>
        </div>
        <div id="restart_div">
            <button id="restart">
                Restart<br>
                <small class="small_text">(tekan Enter)</small>
            </button>
        </div>
    </div>
    <script src="jquery.min.js"></script>
    <script src="script.js"></script>
</body>

</html>

Simpan kode HTLM5 di atas di folder xampplite- htdocs- buat folder baru dengan nama TrafficRacer- simpan kode di atas dengan nama index.html.

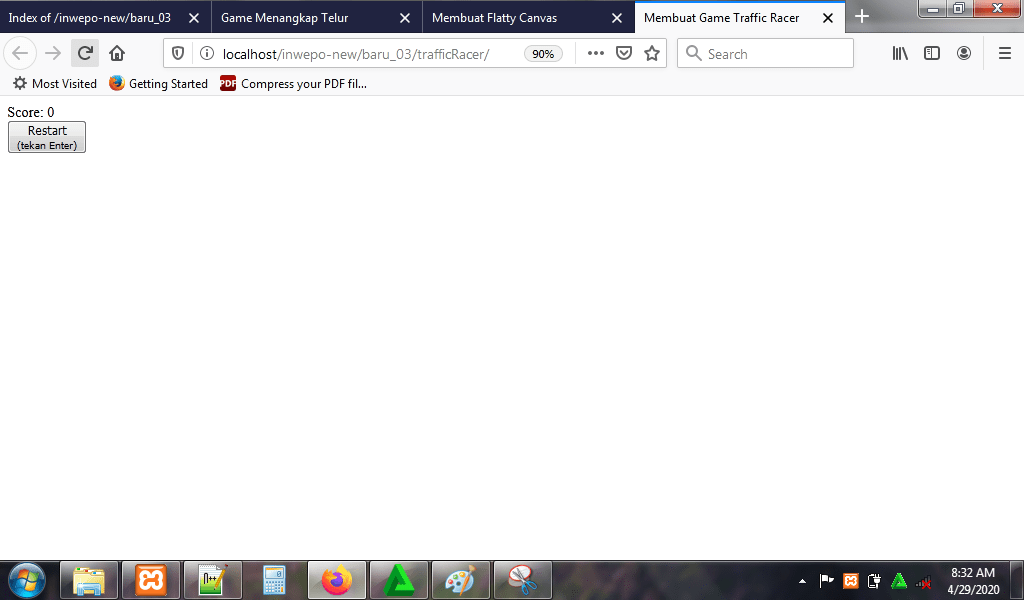

4. Untuk melihat hasil script code di atas, kamu bisa buka browser kamu ketiklah http://localhost/TrafficRacer.

110

5. Untuk membuat background game, ketikkan kode CSS berikut ini.

body {
    height: 100%;
    width: 100%;
    margin: 0;
    background-color: #b22222;
    font-family: sans-serif;
}

#container{
    position: relative;
    height: 90vh;
    width: 25%;
    left: 35%;
    margin-top: 20px;;
    background-color: #292929;
    overflow: hidden;
}
.line{
    position: absolute;
    height: 150px;
    width: 4%;
    margin-left: 48%;
    background-color: rgba(255,255,255,0.5);
}
#line_1{
    top: -150px;
}
#line_2{
    top: 150px;
}
#line_3{
    top: 450px;
}
.car{
    position: absolute;
    height: 60px;
    width: 40px;
    border-radius: 5px;
    box-shadow: 0px 1px 8px 0px black;
}
#car{
    bottom: 8%;
    left: 60%;
    background-color: #ffdf5a;
}
.f_glass{
    position: absolute;
    height: 20%;
    width: 60%;
    margin-left: 20%;
    top: 15%;
    border-radius: 0px 0px 5px 5px;
    background-color: #484848;
}
.b_glass{
    position: absolute;
    height: 20%;
    width: 60%;
    margin-left: 20%;
    bottom: 15%;
    border-radius: 5px 5px 0px 0px;
    background-color: #484848;
}
.f_light_l{
    position: absolute;
    height: 10%;
    width: 20%;
    margin-left: 10%;
    top: -6%;
    border-radius: 5px 5px 0px 0px;
    background-color: #efefef;
}
.f_light_r{
    position: absolute;
    height: 10%;
    width: 20%;
    margin-left: 70%;
    top: -6%;
    border-radius: 5px 5px 0px 0px;
    background-color: #efefef;
}
.f_tyre_l{
    position: absolute;
    height: 20%;
    width: 10%;
    background-color: grey;
    top: 20%;
    left: -10%;
    border-radius: 5px 0px 0px 5px;
}
.f_tyre_r{
    position: absolute;
    height: 20%;
    width: 10%;
    background-color: grey;
    top: 20%;
    left: 100%;
    border-radius: 0px 5px 5px 0px;
}
.b_tyre_l{
    position: absolute;
    height: 20%;
    width: 10%;
    background-color: grey;
    top: 70%;
    left: -10%;
    border-radius: 5px 0px 0px 5px;
}
.b_tyre_r{
    position: absolute;
    height: 20%;
    width: 10%;
    background-color: grey;
    top: 70%;
    left: 100%;
    border-radius: 0px 5px 5px 0px;
}
#car_1{
    top: -100px;
    left: 60%;
    background-color: #26c5ff;
}
#car_2{
    top: -200px;
    left: 40%;
    background-color: #26c5ff;
}
#car_3{
    top: -350px;
    left: 50%;
    background-color: #26c5ff;
}
#restart_div {
    position: absolute;
    height: 100%;
    width: 100%;
    background-color: #292929;
    color: white;
    font-family: sans-serif;
    font-size: 40px;
    text-align: center;
    display: none;
}

#restart {
    border: none;
    padding: 25px;
    color: white;
    background-color: #8a64ff;
    font-size: 30px;
    margin-top: 30%;
}
.small_text{
    font-size: 15px;
}
#score_div{
    position: absolute;
    margin-top: 20%;
    margin-left: 10%;
    font-size: 35px;
    background-color: white;
    color: #454545;
    padding: 10px;
    box-shadow: 4px 4px 0px 1px #808080;
}

Simpan kode CSS di folder xampplite- htdocs- buat folder baru dengan nama TrafficRacer – simpan code CSS dengan nama style.css.

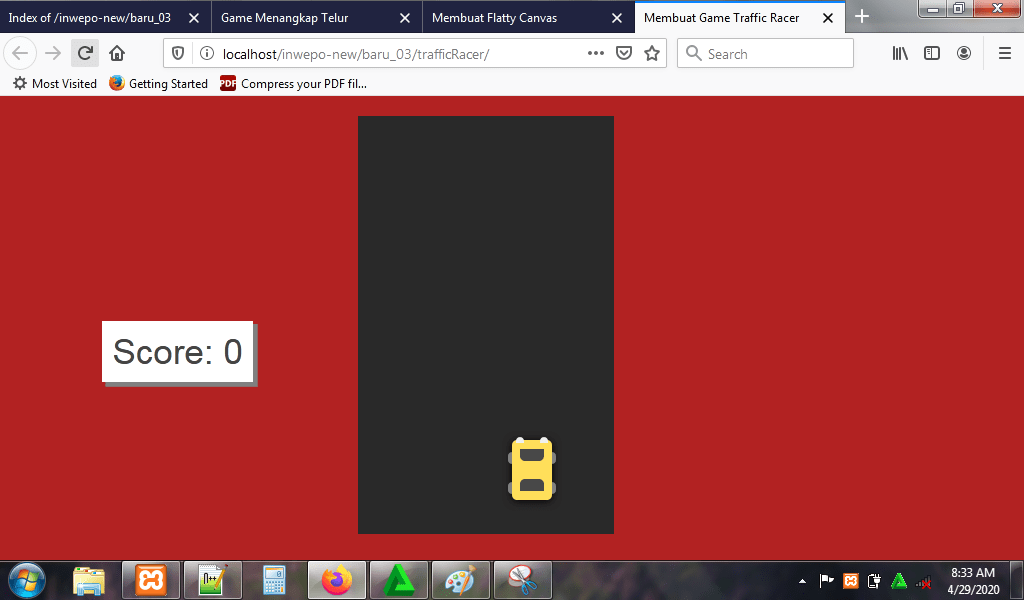

6. Reload alamat url : http://localhost/TrafficRacer. Tampilan game traffic racer, tapi game belum bisa dimainkan.

7. Untuk menambahkan mobil rintangan, buka kembali text editor dan ketikkan kode JavaScript berikut.

/* Arshad Muhammed */
$(function () {

    var anim_id;

    //saving dom objects to variables
    var container = $('#container');
    var car = $('#car');
    var car_1 = $('#car_1');
    var car_2 = $('#car_2');
    var car_3 = $('#car_3');
    var line_1 = $('#line_1');
    var line_2 = $('#line_2');
    var line_3 = $('#line_3');
    var restart_div = $('#restart_div');
    var restart_btn = $('#restart');
    var score = $('#score');

    //saving some initial setup
    var container_left = parseInt(container.css('left'));
    var container_width = parseInt(container.width());
    var container_height = parseInt(container.height());
    var car_width = parseInt(car.width());
    var car_height = parseInt(car.height());

    //some other declarations
    var game_over = false;

    var score_counter = 1;

    var speed = 2;
    var line_speed = 5;

    var move_right = false;
    var move_left = false;
    var move_up = false;
    var move_down = false;

    /* ------------------------------GAME CODE STARTS HERE------------------------------------------- */

    /* Move the cars */
    $(document).on('keydown', function (e) {
        if (game_over === false) {
            var key = e.keyCode;
            if (key === 37 && move_left === false) {
                move_left = requestAnimationFrame(left);
            } else if (key === 39 && move_right === false) {
                move_right = requestAnimationFrame(right);
            } else if (key === 38 && move_up === false) {
                move_up = requestAnimationFrame(up);
            } else if (key === 40 && move_down === false) {
                move_down = requestAnimationFrame(down);
            }
        }
    });

    $(document).on('keyup', function (e) {
        if (game_over === false) {
            var key = e.keyCode;
            if (key === 37) {
                cancelAnimationFrame(move_left);
                move_left = false;
            } else if (key === 39) {
                cancelAnimationFrame(move_right);
                move_right = false;
            } else if (key === 38) {
                cancelAnimationFrame(move_up);
                move_up = false;
            } else if (key === 40) {
                cancelAnimationFrame(move_down);
                move_down = false;
            }
        }
    });

    function left() {
    	  if (game_over === false && parseInt(car.css('left')) > 0) {
            car.css('left', parseInt(car.css('left')) - 5);
            move_left = requestAnimationFrame(left);
        }
    }

    function right() {
        if (game_over === false && parseInt(car.css('left')) < container_width - car_width) {
            car.css('left', parseInt(car.css('left')) + 5);
            move_right = requestAnimationFrame(right);
        }
    }

    function up() {
        if (game_over === false && parseInt(car.css('top')) > 0) {
            car.css('top', parseInt(car.css('top')) - 3);
            move_up = requestAnimationFrame(up);
        }
    }

    function down() {
        if (game_over === false && parseInt(car.css('top')) < container_height - car_height) {
            car.css('top', parseInt(car.css('top')) + 3);
            move_down = requestAnimationFrame(down);
        }
    }

    /* Move the cars and lines */
    anim_id = requestAnimationFrame(repeat);

    function repeat() {
        if (game_over === false) {
            if (collision(car, car_1) || collision(car, car_2) || collision(car, car_3)) {
                stop_the_game();
            }

            score_counter++;

            if(score_counter % 20 == 0){
                score.text(parseInt(score.text()) + 1);
            }
            if(score_counter % 500 == 0){
            	speed++;
            	line_speed++;
            }

            car_down(car_1);
            car_down(car_2);
            car_down(car_3);

            line_down(line_1);
            line_down(line_2);
            line_down(line_3);

            anim_id = requestAnimationFrame(repeat);
        }
    }

    function car_down(car){
        var car_current_top = parseInt(car.css('top'));
        if(car_current_top > container_height){
            car_current_top = -200;
            var car_left = parseInt(Math.random() * (container_width - car_width));
            car.css('left', car_left);
        }
        car.css('top', car_current_top + speed);
    }

    function line_down(line){
        var line_current_top = parseInt(line.css('top'));
        if(line_current_top > container_height){
            line_current_top = -300;
        }
        line.css('top', line_current_top + line_speed);
    }

    restart_btn.click(function () {
        location.reload();
    });

    function stop_the_game() {
        game_over = true;
        cancelAnimationFrame(anim_id);
        cancelAnimationFrame(move_right);
        cancelAnimationFrame(move_left);
        cancelAnimationFrame(move_up);
        cancelAnimationFrame(move_down);
        restart_div.slideDown();
        restart_btn.focus();
    }

    /* ------------------------------GAME CODE ENDS HERE------------------------------------------- */


    function collision($div1, $div2) {
        var x1 = $div1.offset().left;
        var y1 = $div1.offset().top;
        var h1 = $div1.outerHeight(true);
        var w1 = $div1.outerWidth(true);
        var b1 = y1 + h1;
        var r1 = x1 + w1;
        var x2 = $div2.offset().left;
        var y2 = $div2.offset().top;
        var h2 = $div2.outerHeight(true);
        var w2 = $div2.outerWidth(true);
        var b2 = y2 + h2;
        var r2 = x2 + w2;

        if (b1 < y2 || y1 > b2 || r1 < x2 || x1 > r2) return false;
        return true;
    }



});

Simpan kode JavaScript di folder xampplite- htdocs- buat folder baru dengan nama TrafficRacer – simpan code JavaScript dengan nama script.js.

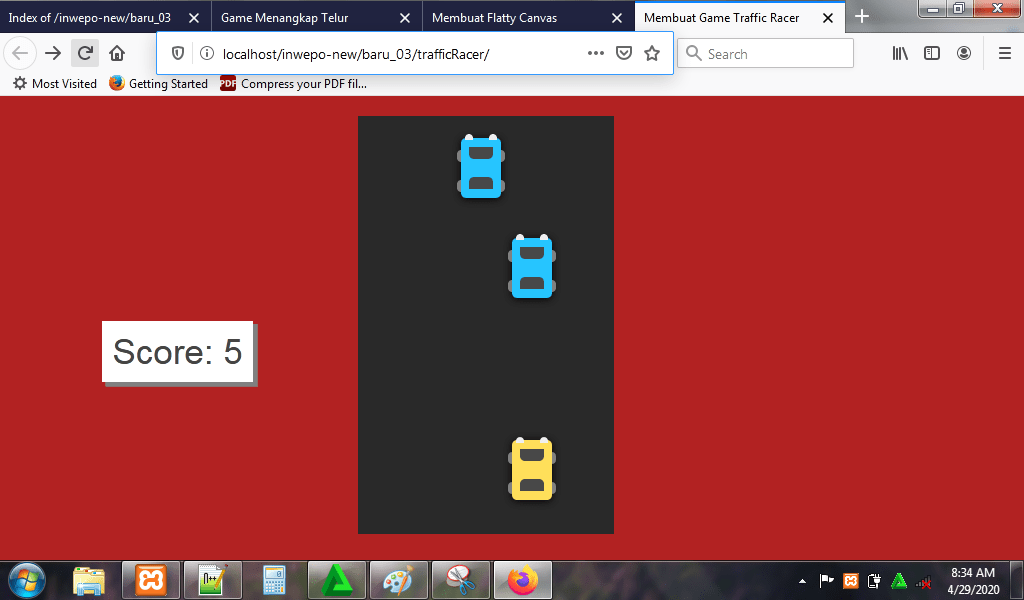

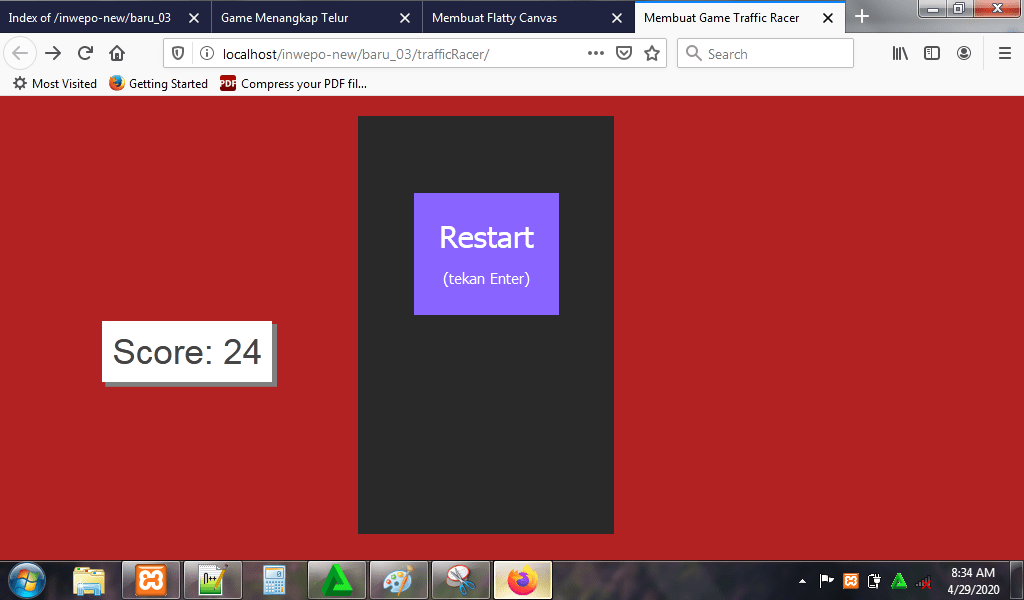

8. Reload alamat url : http://localhost/TrafficRacer. Begitu alamat url di-reload, maka game traffic racer langsung dimulai. Klik tombol geser kanan atau kiri di komputer kamu untuk menghindari mobil penghalang.

310
